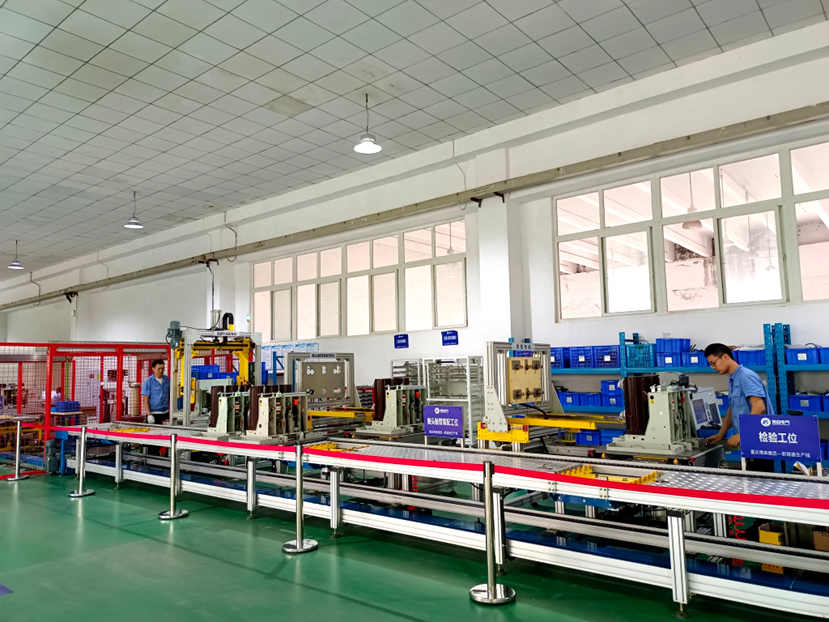

circuit breaker assembly line

1 Overview: Applicable Product Types & Assembly Technology of Circuit Breaker Production Line

1.1 Applicable Product Types

This circuit breaker production line and circuit breaker assembly line are used for mass assembly of indoor high voltage vacuum circuit breakers. It is compatible with VS1 indoor vacuum circuit breakers, the switching components matched with KYN28 medium voltage switchgear, and supports mixed production of multiple models for high voltage switch component manufacturing.

Applicable products: Indoor vacuum circuit breakers: VS1 fixed type and truck mounted vacuum circuit breakers; Matching parts: spring operating mechanisms, vacuum interrupters, insulation cylinders, truck assemblies and secondary wiring components; Compatible products: indoor high voltage load switches of similar specifications.

1.2 Assembly Technology of Circuit Breaker Assembly Line

This circuit breaker assembly line adopts speed chain traveling station assembly technology with modular and segmented layout. Using speed chain conveyor system as the carrier, matched with special tooling pallets for circuit breakers, workpieces are automatically conveyed and positioned between stations. It solves the problems of low efficiency, inconsistent product quality and difficult handling of heavy components in single-station assembly.

The whole circuit breaker production line is equipped with lifting manipulators and special pressing tooling for hoisting and alignment assembly of insulation cylinders, interrupters, spring mechanisms and truck assemblies to reduce manual labor intensity. Each workstation is equipped with special positioning jigs and clamps to ensure consistent assembly dimension, mechanism stroke and precision of insulation parts for circuit breakers.

The production line integrates speed chain conveying, tooling positioning, step-by-step inspection, full product testing and finished product unloading. Processes include mechanism pre-assembly, interrupter & insulation cylinder pressing, conductive circuit assembly, truck assembly, secondary wiring, mechanical characteristic commissioning, full inspection and finished product discharging. It realizes continuous mass production on the circuit breaker assembly line, improves production tact and pass rate, and meets mass production requirements of VS1 vacuum circuit breakers.

2 Core Assembly Process of Circuit Breaker Assembly Line

Loading Station: Place circuit breaker truck or base on the speed chain tooling pallet. The tooling completes positioning and clamping, and the workpiece is sent into the circuit breaker production line.

Operating Mechanism Pre-assembly Station: Assemble spring operating mechanisms and complete pre-commissioning of mechanisms.

Interrupter & Insulation Cylinder Pressing Station: Assemble and press vacuum interrupers and insulation cylinders, connect and fasten conductive components.

Truck Assembly Station: Assemble the circuit breaker main body with the truck.

Secondary Wiring Station: Arrange, connect and mark secondary control cables.

Mechanical Characteristic Commissioning Station: Adjust opening and closing parameters and verify mechanism stroke.

Full Inspection Station: Carry out mechanical characteristic test and visual inspection. Repair non-conforming products on site.

Finished Product Offline Station: Unload qualified circuit breakers for warehousing. Empty pallets return to the starting station of the circuit breaker assembly line along the speed chain for cyclic production.

3 Customizable Parameters of Circuit Breaker Production Line

Applicable Product Size & Load Parameters: Customized according to customer circuit breaker models, compatible with VS1 indoor vacuum circuit breakers. Load capacity of tooling pallets can be customized to match workpiece weight.

Assembly Line Layout & Station Parameters: The number of workstations on the circuit breaker assembly line is optional, including 4-station, 6-station, 8-station options. Line length and routing can be adjusted according to workshop space.

Lifting Manipulator Configuration: Manipulator load and working radius are optional. Lifting tools and grippers can be replaced for handling and assembly of circuit breaker parts.

Speed Chain Conveyor Operating Parameters: Speed of speed chain conveyor is adjustable. Workpiece accumulation buffer can be added. The control system supports two modes: manual commissioning and automatic operation.

Modular Tooling Fixtures: Quick-change tooling fixtures. Switch for different circuit breaker models to support mixed production of multiple varieties without major modification of the main line structure.

Optional Expansion Items: The circuit breaker production line can be equipped with code scanning traceability, torque monitoring, on-line mechanical characteristic test bench, safety fence and workstation display screen.
